Cintropur Domestic Water Treatment - TE Range Specification.





Cintropur Filter Systems
Domestic TE Range Specification

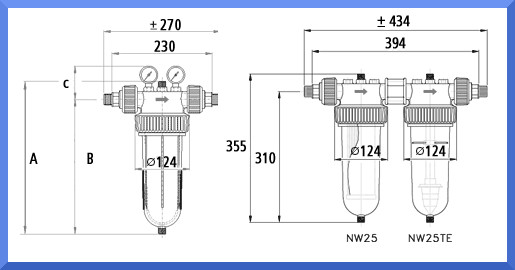

Dimensions


A

B

C

NW 18

232

187

77

NW 25

355

310

77

NW 25 TE

355

310

77

NW 32

540

495

77

NW 32 TE

540


495


Materials

Head:

polypropylene reinforced with glass fibre

Bowl:

acrylonitrile styrene transparent and shock-resistant

Centrifugal propeller:

polyethylene

Fastening cover

polyethylene

Filter bags:

synthetic non-woven, non-felt fibres

O-rings:

butadiene-nitrile rubber



Technical Data

NW 25 Duo

NW 25 TE

NW 32 TE

Pipe Diameter

" or 1"

1"

1 "

Average Flow (m/h)

0.5*

0.5*

0.5*

Pressure (bar)

10

10

10

Max Pressure (bar)

16

16

16

Max Temperature (C)

50

50

50

Weight (kg)

2.6

1.3

1.8

Standard Filter Sleeve

25

-

-

Bowl Volume

2 x 0.85 dm

0.85 dm

1.70 dm

Filtration Surface (cm)

190

450

840



* with activated carbon Norit Row 0.8 SCIN
