Sita SMP Swimming Pool UV Range

Sita SMP Swimming Pool UV Range



Thanks to the higher power emitted by the medium pressure lamps, SITA MEDIUM PRESSURE systems can treat large quantities of water with a modest number of lamps.

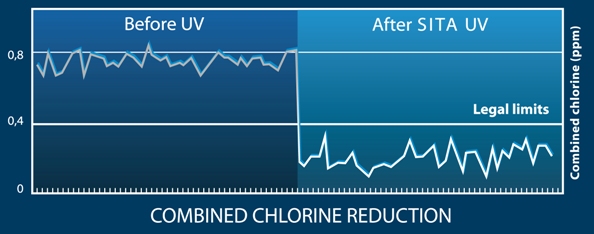

Medium pressure UV lamps that have a multispectrum wavelength give the SITA SMP unit the ability to break chemical bonds, and have a good reduction of unwanted chemicals in water. This Photolysis process applys well in pools (reduction of combined chlorine) and process water (de-chlorination, de-ozonation, TOC reduction)

These UV systems may also be useful as a post-treatment of waste water. Compact design and few lamps make the UV unit ideal for installation and maintenance.

Specifications

FLOW-RATE:SMP Series
• From 25 to 2.000 m3/h

LAMPS:
• Medium pressure Uv lamps. Life span: 5.000 -7000 hrs

UV REACTOR MATERIAL:
• Int/ext. polished stainless steel AISI 316L

UV DOSE:
• > 800 J/mē

MAX PRESSURE:
• 9 bar

Data valid with water with ideal characteristics::
• Transmittance 99% (1cm) - T=20°C (5.000 h)

Electrical Control

The ELECTRICAL PANELS OF DS SERIES have been supplied with a microprocessor which, besides carrying out the starting of the system, continually controls its conditions following some pre-set personalizable parameters.


They are supplied, according to the models, with:

* control of the general working by programmable micro-processor
* plant working hour-meter
* resettable lamp working hour-meter
* check that the lamps are working properly
* monitoring the temperature inside the electrical panel
* programmable multi-function display
* memory blocking of the identity number of any faulty lamp
* RS port for PC connection
* visual alarm for faults
* monitoring of temperature and irradiation, with pre-set alarm thresholds
* Power regulation (only for SMP)
* more possibilities in order to satisfy every request










Call us for the best prices and advice. Tel: 0845 10 80 680 / 01403 701970
