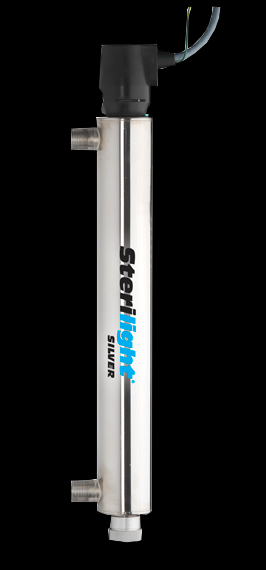

Sterilight Silver S2Q Specification:
Flow Rate
|
11 L/min (3 gpm) max |
| Length |
43.8 cm (17 1/4") |
| Width |
6.5 cm (2.5") |
| Height |
6.5 cm (2.5") |
Cell Diameter
|
6.5 cm (2.5") |
Shipping Weight
|
2.7 kg (6 lbs.) |
| Voltage |
100- 130V./50- 60Hz. or 200-250V ./50-60Hz. |
| Power Consumption (watts) |
19 |
| Total Lamp Watts |
17 |
| Maximum Operating Pressure |
8.62 bar (125 psi) |
| Ambient Temperature |
2-40°C (36-104°F) |
| Quartz Sleeve |
Yes |
| Inlet/Outlet Port Size |
1/2" MNPT |
| Reactor Chamber Material |
304 Stainless Steel (316L Optional) |
Sterilight Silver Series from Viqua (formerly R-Can), is ideally suited for point of use water treatment to kill bacteria (including coliform and e.coli), viruses, cryptosporidium, giardia, and a wide range of other microbiological contaminants. The larger Silver Series models, specifically the S5Q-PA, S8Q-PA, and S12Q-PA, can also be used for whole house applications where an economical unit with an average array of features is required. Given its economical price, the Silver Series is a popular choice for homeowners desiring protection against microbiological contaminants as a precautionary prophylactic treatment measure even though their water has not tested positive for bacteria or other pathogen.
Application:
UV water treatment is an excellent choice to eliminate biological contamination from most home drinking water, whether your home is on a municipal water system or untreated private water system (well, lake water, rain water harvesting etc.). Sterilight Silver Ultarviolet water disinfection is equally at home providing sanitisation to small commercial applications. Its sole purpose is to kill harmful biological contaminants, and therefore should always be combined with other forms of filtration (GAC / carbon block, KDF, or reverse osmosis) for reduction of heavy metals, chlorine, VOC's, and other chemical contaminants.
Features:
- flow rates of 2 L/min (1/2 gpm) in clear fresh water
- flow rates of 4 L/min (1 gpm) in clear fresh water
- flow rates of 7.5 L/min (2 gpm) in clear fresh water
- flow rates of 19 L/min (5 gpm) in clear fresh water
- flow rates of 30L/min (8 gpm) in clear fresh water
- flow rates of 49 L/min (13 gpm) in clear fresh water
- NEW electronic "ICE" ballasts featuring open loop current control (patent pending), ballast features IEC connector, audible alarm & power-on indicator
- hard glass, low pressure mercury vapour lamps with high isolation pin design
- quick-lock moulded lamp connector
- compact design incorporating 304 stainless steel reactor chambers,
- brilliantly polished for laboratory or medical applications
- easy servicing - no need to disconnect water flow to change UV lamp
- open end quartz sleeves and aluminum gland nuts for optimum operating temperature and sealing efficiency
- 99.99% destruction of bacteria, virus, and protozoan cysts (Giardia lamblia & cryptosporidium) at rated flow
- natures way to protect your water without the addition of harmful chemicals
includes mounting clamp
- seven year warranty on reactor chamber for unparalleled protection
- product certified by CSA (C US) and CE
Warranty:
The Sterilight SQ-PA, S1Q-PA, S2Q-PA, S5Q-PA, S8Q-PA and S12Q-PA water disinfection systems carry a seven year warranty on the stainless steel reactor chamber, a one year warranty on UV lamps, and a five year pro rated warranty on all other components.
