  1. #Product Info#

    The Duplex Metered Commercial Water Softener 20-litre (1 inch connections) that can accommodate a flow rate of 0.83 m/hour and a capacity of 3.3m.

    CLICK HERE TO SEE OTHER DUPLEX SIZE OPTIONS. ✅


    Duplex Softeners are designed to supply softened water in situations where a continuous and uninterrupted supply of softened water is required. These systems have two softening vessels and one brine tank.


    There will always be one tank in service while the other tank is running a regeneration cycle or on standby, thereby guaranteeing 24/7 soft water production.

    Typical applications are Hotels, Restaurants, Car Washes, Caravan Parks, and where the anticipated usage is not able to be estimated or may well increase during seasonal operations.

    Discover our  Duplex Commercial Water Softener

    You need to know when you are supplying a customer, that the water they need to be soft, is actually soft. If, on a personal basis, one can be tolerant of the quality of water, and in particular its sweetness, this is not the case for water consumed by third parties, especially in a commercial or professional environment. Of course, the water must be pure and perfectly filtered to avoid any sanitary problems that would be harmful to your company and its image. On the other hand, the water must be soft. Unfortunately, depending on the region where it is drawn, or if it comes from a badly regulated recycling system, tap water can be more or less hard. It must therefore be treated with a water softener, which must have sufficient treatment capacity for the daily consumption. It is obvious that the volume of water consumed in a commercial or professional environment is not the same as for personal or family consumption.

    Choose the solution and capacities that suit you best

    Our Duplex Commercial Water Softener is available in several capacities and flow rate levels. If the treatment volume is 20 litres and the fresh water outlet is one inch, it can be used in a variety of ways thanks to its integrated regulator. We offer you 10 sizes of Duplex Water Softeners so that you can find the right unit. You can choose between a capacity of 3.3 cubic metres and a flow rate of 0.8 cubic metres per hour, 5 cubic metres for a flow rate of 1.2 cubic metres per hour, 8.3 cubic metres for a flow rate of 2 cubic metres per hour. The most demanding customers will have access to a capacity of 10 cubic metres and a flow rate of 2.4 cubic metres per hour and even to a capacity of 12.5 cubic metres combined with a flow rate of 3.8 cubic metres per hour. These features meet the standard needs we have seen from our customers who run hotels, restaurants and even car washes. They even leave some room for increased consumption according to seasonal usage. The advantage of a Duplex Water Softener is that when one of the tanks is empty, the other, already treated, is automatically put into operation, allowing for 24/7 operation.

    Features suitable for commercial operation

    By opting for our Duplex Commercial Water Softener you are choosing a model with minimal space requirements and optimal operating characteristics. It requires only 3 kilos of salt to function at full capacity and is less than one metre high and 20 centimetres wide. With its storage capacity of 35 litres you have plenty of soft water. Its resin body makes it insensitive to corrosion, scratches and shocks. Do not hesitate to contact us for any spare parts you may need to change and for any advice you may require.



  2. #Spec & Diagram#

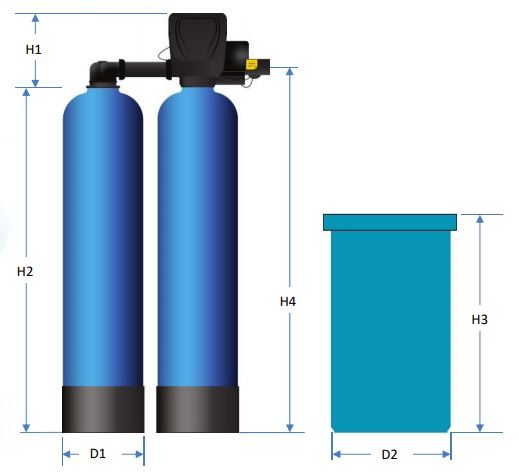

    CW20 Metered Duplex Water Softener Specification:



     Resin Volume :  20
     Vessel:  8x35"
     Flow : 0.8
    Peak Flow : 1.2m
     Capacity  @ 300ppm  3.3
     Valve Type  : WS1 TT
     Salt (kg) : 3
     Valve Height (H1)  187mm
     Vessel Height (H2) 891mm
     Brine Tank Height (H3) 450mm
     Height to Inlet/Outlet (H4) 957mm
    Vessel Width (D1)  215mm
    Brine Tank Width (D2) 320mm (square)





  3. #Spec & Install Instructions#









    Call us for advice. Tel: 0845 10 80 680 / 01403 701970

Duplex Commercial Water Softener 20-litre (1 inch) Flow 0.8m3/HR Capacity 3.3 m3

GM Autoflow
£ 710.00
