    The Duplex Metered Commercial Water Softener 200 litre (1.25 inch connections) can accommodate a flow rate of 7.7 m3/hour and a capacity of 33 m³.

    CLICK HERE TO SEE OTHER DUPLEX SIZE OPTIONS. ✅


    Duplex Softeners are designed to supply softened water in situations where a continuous and uninterrupted supply of softened water is required. These systems have two softening vessels and one brine tank.


    There will always be one tank in service while the other tank is running a regeneration cycle or on standby, thereby guaranteeing 24/7 soft water production.

    Typical applications are Hotels, Restaurants, Car Washes, Caravan Parks, and where the anticipated usage is not able to be estimated or may well increase during seasonal operations.

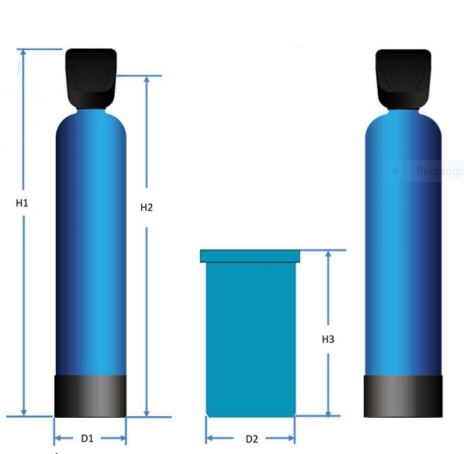

  2. #Spec & Diagram#

    CW200  Metered Duplex Water Softener Specification:



     Resin Volume :  200
     Vessel:  18x65"
     Flow : 7.7³
     Capacity  @ 300ppm  33³
     Valve Type  : WS1.25
     Salt (kg) : 30
      Vessel Valve Height (H1) : 1957mm
    Meter Reading Height (H2) : 1823mm
    Brine Tank Height (H3) : 1150mm
    Vessel Width (D1) : 510mm
     Brine Tank Width (D2) : 880mm (diameter)


  3. #Spec & Install Instructions#








    Call us for advice. Tel: 0845 10 80 680 / 01403 701970



Duplex Commercial Water Softener 200-litre (1.25inch) Flow 7.7 m3/HR Capacity 33 m3

£ 2,799.00
