  1. #Product Info#

    Viqua VH150 UV Water Disinfection System flow rates up to 1.1 m3/h - single tap and small home application.

    The VH150 replaces the S5Q-PA system.

    Ideally suited to inactivate chlorine-resistant parasites such as Cryptosporidium and Giardia, harmful bacteria like E.Coli and viruses not visible to the naked eye.

    VH150 Specification:

    Max Flow Rate : 1.1 m3/h (19 lpm / 5 GPM)

    Lamp life : 9,000 hours / 1 year

    Length:  33 cm

    Diameter : 3.5 cm

    Shipping Weight : 3.6 kg

    Voltage : 120- 240V

    Power Consumption (watts) : 32

    Maximum Operating Pressure : 8.62 bar (125 psi)

    Ambient Temperature : 2-40C (36-104F)

    Lamp / Quartz / Sleeve /Controller : S150RL / QSO-150 / BA-ICE-CL

    Inlet/Outlet Port Size : " MNPT

  2. #Benefits & Downloads#

    Benefits:

    • Space Efficient :  High UV output lamp technology allows for a smaller footprint while providing the same UV performance as a longer chamber.
    • Reliable: The constant current feature ensures stable UV lamp output, regardless of power fluctuations
    • Ease of Maintenance: Audible lamp replacement reminder and countdown timer with digital display. Controller will also go into alarm if the lamp fails
    • High-performance UV lamp, rigorously tested to provide consistent output over the entire lamp life (9000 hours)
    • Application: Perfect for a wide range of whole-home, point-of-entry water treatment solutions in homes, cottages, or OEM applications


    Warranty:

    Seven year warranty on the stainless steel reactor chamber
    One year warranty on UV lamps
    Five year pro rated warranty on all other components.

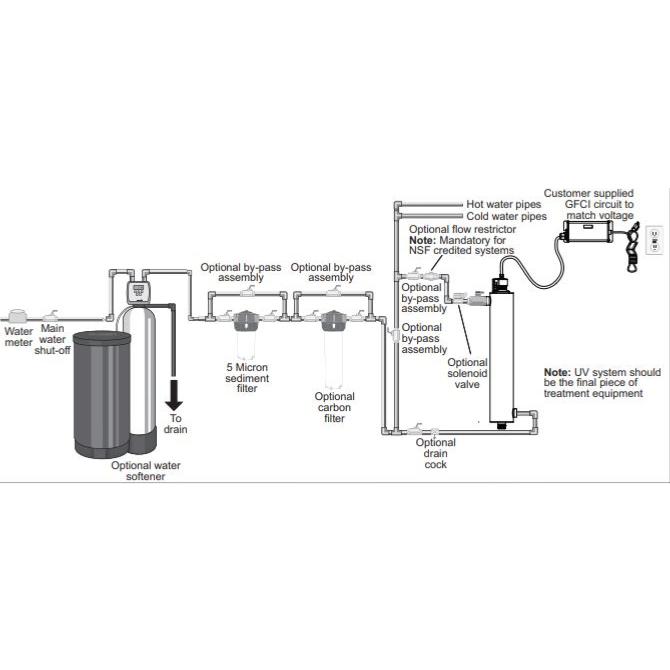

  3. #Install Diagram#




    Call us for advice. Tel: 0845 10 80 680 / 01403 701970




Viqua VH150 UV Water Disinfection System - Flow Rate 1.1 m3/h

Viqua
In Stock
£ 249.00
5000g
