  1. #Product Info#

    Viqua VH200 Water Disinfection System flow rates up to 2.0 m3/h 34 L/min (9gpm) - suitable for larger homes and small businesses.

    The VH200 replaces the S8Q System.

    Ideally suited to inactivate chlorine-resistant parasites such as
    Cryptosporidium and Giardia, harmful bacteria like E.Coli and viruses not visible to the naked eye.



    VH200 Specification:

    Max Flow Rate : 2.0  m3/h (34 lpm / 9 GPM)

    Lamp life : 9,000 hours / 1 year

    Length:  45 cm

    Diameter : 8.9 cm

    Shipping Weight : 5.4 kg

    Voltage : 120- 240V

    Power Consumption (watts) : 35

    Maximum Operating Pressure : 8.62 bar (125 psi)

    Ambient Temperature : 2-40C (36-104F)

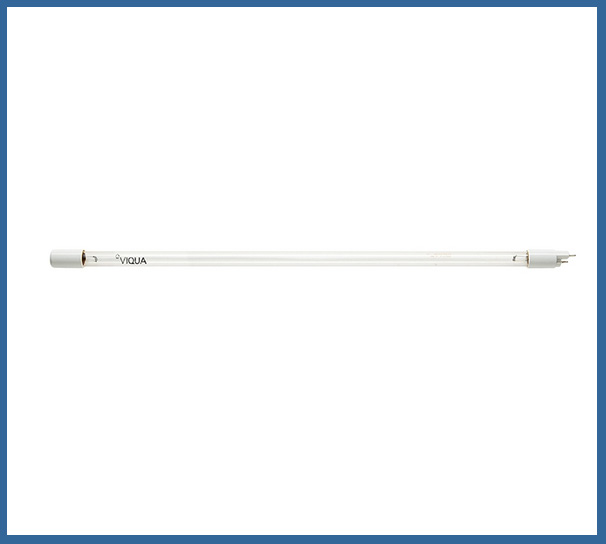

    Lamp / Quartz / Sleeve /Controller : S200RL / QS-001 / BA-ICE-CL

    Inlet/Outlet Port Size : " MNPT

  2. #Benefits & Downloads#

    Benefits:

    • Reliable: The constant current feature ensures stable UV lamp output, regardless of power fluctuations
    • Space Efficient: High UV output lamp technology allows for a smaller footprint while providing the same UV performance as a longer chamber.
    • Ease of Maintenance: Audible lamp replacement reminder and countdown timer with digital display. Controller will also go into alarm if the lamp fails
    • High-performance UV lamp, rigorously tested to provide consistent output over the entire lamp life (9000 hours)
    • Application: Perfect for a wide range of whole-home, point-of-entry water treatment solutions in homes, cottages, or OEM applications


    Warranty:

    Seven year warranty on the stainless steel reactor chamber
    One year warranty on UV lamps
    Five year pro rated warranty on all other components.




  3. #Install Diagram#




    Call us for advice. Tel: 0845 10 80 680 / 01403 701970




Viqua VH200 UV Water Difinfection System - Flow Rate 2.0 m3/h

Viqua
In Stock
£ 379.00
