    Viqua VH410M UV Water Disinfection System (replaced the S12Q) flow rates up to 4.2 m3/h 70 L/min (18pm) - suitable for larger homes and small businesses

     Ideally suited to inactivate chlorine-resistant parasites such as Cryptosporidium and Giardia, harmful bacteria like E.Coli and viruses not visible to the naked eye.

    *This monitored version allows for the installation of an optional solenoid valve which will stop the flow of water through the chamber should the UV performance fall below the safe level.

    VH410M Specification:

    Max Flow Rate : 4.2  m3/h (70 lpm / 18 GPM)

    Lamp life : 9,000 hours / 1 year

    Length:  59.6 cm

    Diameter : 8.9 cm

    Shipping Weight : 7.7 kg

    Voltage : 100- 140V

    Power Consumption (watts) : 46

    Maximum Operating Pressure : 8.62 bar (125 psi)

    Ambient Temperature : 2-40C (36-104F)

    Lamp / Quartz / Sleeve /Controller : S410RL-HO / QSO-410 / BA-ICE-CM

    Inlet/Outlet Port Size : " - 1" MNPT

  2. #Benefits & Downloads#

    Benefits:

    • Space Efficient: High UV output lamp technology allows for a smaller footprint, while providing the same UV performance as a longer chamber.
    • Ease of Maintenance: Audible lamp replacement reminder and countdown timer with digital display. Controller will also go into alarm if the lamp fails.
    • Reliable: The constant current feature ensures stable UV lamp output, regardless of power fluctuations.
    • High-performance UV lamp, rigorously tested to provide consistent output over the entire lamp life (9000 hours).
    • Application: Perfect for a wide range of whole-home, point-of-entry water treatment solutions in homes, cottages, or OEM applications.


    Warranty:

    Seven year warranty on the stainless steel reactor chamber
    One year warranty on UV lamps
    Five year pro rated warranty on all other components.

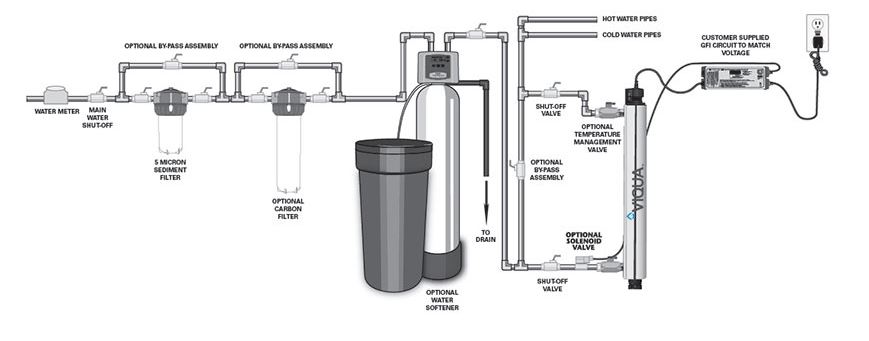

  3. #Install Diagram#




    Call us for advice. Tel: 0845 10 80 680 / 01403 701970




Viqua VH410M UV Water Disinfection System - Flow Rate 4.2 m3/h

Viqua
£ 906.46
8000g
