Cintropur Water Filter NW32 - Flow Rate 6.5m/h / 1 "

Cintropur
In Stock
(99 Item(s) In Stock)
£ 99.50
7500g

payment 100% secured

AMEX/VISA/Mastercard with Sage Pay & Paypal

fast shipping

Worldwide deliveres

for advice 0344 557 2654

Monday to Friday 9am to 6pm

  1. #Product Info#

    Cintropur offers a wide range of mechanical filters designed for filtering clear and slightly contaminated water. There are seven products in the Cintropur range of Domestic Filters, three offering standard filtration and four for water treatment and are capable of serving flow rates from 0 up to 6.5 m/h, the domestic range consists of NW18 filter, NW25 filter and NW32 filter.

    Technical Data - NW32


    Pipe Diameter

    1 "

    Average Flow (m/h)

    6.5

    Pressure (bar)

    10

    Max Pressure (bar)

    16

    Max Temperature (C)

    50

    Weight (kg)

    1.8

    Standard Filter Sleeve

    25

    Filtration Surface (cm)

    840



    Cintropur domestic water filters are designed for yields of between 2 and 7 m/hour and for pressures of up to 10 bar


    • NW 18 : 3.5 m3/h (")
    • NW 25 : 5.5 m3/h (" + 1")
    • NW 32 : 6.5 m3/h (1")

    Basic principle filtering out solid particles (earth, sand, rust, etc,) suspended in the water.

    Possibility of combining mechanical filter + UV and activated carbon with DUO, TIO® (Two in one) TIO®+UV.

    Main advantages

    • double stage of filtration (centrifugal flow thanks to the vane + filtering sleeve)
    • filtration practically without accumulation
    • low pressure drop
    • high and constant flow rate
    • wide choice of filtering fineness ranging from 5 to 300 microns
    • sealing guaranteed thanks to the O-ring system
    • fast and easy rinsing thanks to the drain cock
    • long lifetime and uninterrupted spare parts supply
    • reduced need for maintenance

    Cintropur domestic water filters are fitted with a 25 micron filter sleeve as standard issue, a system of interchangeable and disposable sleeves offer filtration at 1, 5, 10, 25, 50 and 100 micron. A 150 micron nylon (washable) sleeve is also available for the NW 25 and NW 32 models.

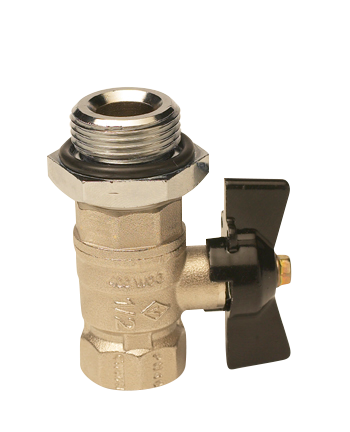

    The connection options range from " to 1 ", using a connector set that allows placement and removal of the filter without requiring any tools

    Bowl transparency enables visual inspection of impurity deposits.

    Recommended replacement of filters at least twice a year for drinking water.

    Filter sleeves come in a flat pack of 5 and are easy to post.

    Ten Key Points about Cintropur Domestic Filters



    1) High Flow rate: from 2m/h to 7 m/h
    2) Low Pressure Drop: due to the diameter of the filter support
    3) Range of Connections: from " to 1:"
    4) Double Filtration: vane centrifugal effect and filter sleeve
    5) Large Range of Filtering Levels: from 1 to 150
    6) All Spare Parts Available
    7) Drain Cock to Remove Particles
    8) Transparent Bowl: to see the state of the sleeve
    9) 'O' Ring System: no tool required
    10) Maintenance: low cost and environmentally friendly - only the sleeve has to be changed





    Technical characteristics

    Available Filter Sleeves: 1, 5, 10, 25, 50, 100 micron (also 150 micron washable nylon for NW 25 and NW 32)
    Maximum temperature: 50 degrees continuous
    Maximum usage pressure: 16 bar
    Bursting pressure: 30 bar
    Average yields for 0.2 bar with 25 micron filter:

    NW18: 3.5 m/hour
    NW25: 5.5 m/hour
    NW32: 6.5 m/hour

    Bowl transparency facilitates visual inspection of impurity deposits.
    Recommended replacement of filters at least twice a year for drinking water.
    Filter sleeves come in a flat pack of 5 and are easy to post.

    At the base of the bowl a purging screw allows evacuation of the largest particles.

    Purging screw


    Filters are supplied with a dismounting key.

    Dismount key
