Cintropur



Cintropur offers a wide range of Industrial water filters designed for filtering out clear and slightly contaminated water.

All Cintropur Industrial water filters are made of high-quality synthetic materials and offer connection options from 2" to 3" and yields from 15,000 to over 30,000 litres per hour with very low load losses.

Supplied with a 25 micron filtering sleeve, two pressure gauges and a purging valve as standard issue.

The new industrial range features 3 filters and is capable of handling flow rates from 20 to 30 m³/h.

  • NW 500 : 20 m3/h (2")
  • NW 650 : 25 m3/h (2 ½")
  • NW 800 : 30 m3/h (3")

Basic principle: filtering out solid particles (earth, sand, rust, etc,) suspended in the water.

Possibility of combining mechanical filter + UV and activated carbon with DUO, TIO® (two in one) TIO®+UV.


Main advantages

  • double stage of filtration (centrifugal flow thanks to the vane + filtering sleeve)
  • filtration practically without accumulation
  • low pressure drop
  • high and constant flow rate
  • large choice of filtering fineness ranging from 5 to 300 microns
  • 100% synthetic filter and high resistance
  • sealing guaranteed thanks to the O-ring system
  • fast and easy rinsing thanks to the drain cock
  • long lifetime and uninterrupted spare parts supply
  • reduced need for maintenance

All prices are plus VAT and delivery

Call us for the best prices and advice. Tel: 0845 10 80 680 / 01403 701970

Cintropur Water Filter Systems


Proud distributors of the excellent quality Cintropur Filer Systems, intended for domestic and industrial water filtering, as well as rain, spring or well water recovery and treatment. Suitable for Residential, Industrial and Agricultural markets, also suitable for watering and irrigation. All prices are plus V.A.T. and delivery.

             Cintropur Domestic Water Filters          Cintropur Industrial Water Filters         Cintropur UV Range          Cintropur Spares





GM Autoflow are proud distributors of the excellent quality Cintropur water filters and filtration systems, intended for domestic and industrial water system filtration, as well as rain, spring or well water recovery and treatment. Suitable for Residential, Industrial and Agricultural markets, also suitable for watering and irrigation.

Cintropur performs either a mechanical filtration of particles, a chemical filtration through activated carbon absorption, or sterilizes water by ultraviolet radiation of UV-C type.

We supply all Citropur accessories and spare parts, if you cannot find what you are looking for, please contact our sales department on 0845 10 80 680.


Basic Principle

With more than 35 years of experience, CINTROPUR® has based its reputation on quality products in the water filtration business.

The brand name CINTROPUR® refers to a wide range of centrifugal filters for clean water (fittings from ľ'' to 3''. Flow rates from 1 to 50 m3/h).


The aim is to remove all the solid particles suspended in the water (earth, sand, rust, etc.).
A second range of products offers water treatment solutions with activated carbon or polyphosphates, silicates and silicon-polyphosphates.

CINTROPUR® offers a double-stage of filtration concept.

First, the water flow from the inlet is directly transformed into a centrifugal spin forcing the larger particles down into the lower bowl.

The next stage of filtration is achieved by the exclusive filter sleeve, available in different finenesses ranging from 5 up to 300µ.


Cintropur Features:

  • You cant fail to be impressed by the high flow rates and low pressure drops provided by the unique CINTROPUR® concept.
  • Only a filter sleeve is to be replaced every 6 months, making the CINTROPUR range economical and ecological.
  • Made from a first-class quality synthetic material, CINTROPUR stands out by its robustness and reliability.
  • centrifugal effect created by spinning
  • low pressure drop
  • constantly high flow rate
  • disposable or washable filter sleeve
  • ecological and economical filtration methos




Call us for the best prices and advice. Tel: 0845 10 80 680 / 01403 701970

Cintropur Water Filters - Replacement Socks and Filter Sleeves  - SINGLE PACKS

Cintropur Socks and Filter Sleeves for NW500, 650, 800, 50, 62, 75, NW32, NW25, & NW18




Cintropur filter systems are aimed at removing solid particles such as earth, sand, rust and moulds from water supplies.

The Cintropur range is capable of filtering particles from 300 microns down to as fine as five microns in size. The low maintenance costs are a key selling point. The Cintropur filter sleeve is a very low cost replaceable item, so filter maintenance is a simple process and replacement costs are low.

The following are available:
  • 5 microns and 10 microns

    Typical use: the 5 µ sleeve is highly recommended for an efficient protection of ultrafiltration, nano and osmosis membranes. The final user will also use this size to retain smallest particles on the public water mains.

  • 25 microns

    Typical use: it is the standard size that is sold with all Cintropur filters when you place an order. It is a good choice for retaining all particles on rainwater harvesting, drilling and well waters. You can also use this size on the public water mains or even before a UV sterilization device.

  • 50 and 100 microns

    Typical use: Will also be used to protect public water mains, drilling and well waters…

  • 150 and 300 microns

    Typical use: These are made of nylon and are thus washable. The main uses are the irrigation and spraying applications.


Cinropur Filter Sleeves come in packs of 5.

Please call our sales department on 0845 10 80 680 for prices and further information, or email your order.


 NW18

NW25, NW25 DUO, TIO

5 micron
1 micron
10 micron
5 micron
25 micron
10 micron
50 micron
25 micron
100 micron
50 micron



100 micron



150 micron Nylon


300 micron Nylon

NW32

NW50, NW62, NW75, NW500. NW650, NW800

1 micron
1 micron
5 micron
5 micron
10 micron
10 micron
25 micron
25 micron
50 micron
50 micron
100 micron
100 micron
150 micron Nylon
150 micron Nylon



300 micron Nylon



Call us for the best prices and advice. Tel: 0845 10 80 680 / 01403 701970


All prices are plus VAT and delivery



Cintropur Water Filter - Replacement Socks and Filter Sleeves - MULTI PACKSMultipacks of Cintropur Socks and Filter Sleeves for NW500, 650, 800, 50, 62, 75, NW32, NW25, & NW18

Buy multi pack socks and SAVE 15%

Multi pack = 5 packs






Cintropur filter systems are aimed at removing solid particles such as earth, sand, rust and moulds from water supplies.

The Cintropur range is capable of filtering particles from 300 microns down to as fine as five microns in size. The low maintenance costs are a key selling point. The Cintropur filter sleeve is a very low cost replaceable item, so filter maintenance is a simple process and replacement costs are low.

The following are available:
  • 5 microns and 10 microns

    Typical use: the 5 µ sleeve is highly recommended for an efficient protection of ultrafiltration, nano and osmosis membranes. The final user will also use this size to retain smallest particles on the public water mains.

  • 25 microns

    Typical use: it is the standard size that is sold with all Cintropur filters when you place an order. It is a good choice for retaining all particles on rainwater harvesting, drilling and well waters. You can also use this size on the public water mains or even before a UV sterilization device.

  • 50 and 100 microns

    Typical use: Will also be used to protect public water mains, drilling and well waters…

  • 150 and 300 microns

    Typical use: These are made of nylon and are thus washable. The main uses are the irrigation and spraying applications.


Cinropur Filter Sleeves come in packs of 5.

Please call our sales department on 0845 10 80 680 for prices and further information, or email your order.


 NW18

NW25, NW25 DUO, TIO

5 micron
1 micron
10 micron
5 micron
25 micron
10 micron
50 micron
25 micron
100 micron
50 micron



100 micron



150 micron Nylon


300 micron Nylon

NW32

NW50, NW62, NW75, NW500. NW650, NW800

1 micron
1 micron
5 micron
5 micron
10 micron
10 micron
25 micron
25 micron
50 micron
50 micron
100 micron
100 micron
150 micron Nylon
150 micron Nylon



300 micron Nylon



Call us for the best prices and advice. Tel: 0845 10 80 680 / 01403 701970

Cintropur New Industrial Replacements and Spares - for NW500, NW650, NW800, NW500TE

 Buy multi pack socks and save 15%

 Cintropur Spares for  New Industrial Filter Range- NW500, NW650, NW800, NW500TE


Cintropur Spares for New Industrial Filter Range- NW500, NW650, NW800, NW500TE

Ref 50

NW 500-650 Filter Head

Ref 61

Drain Valve

Ref 51

NW 800 Filter Head

Ref 62

Spanner

Ref 52

Centrifugal Vane

Ref 63

NW 500 Connections Set 2"

Ref 53

PVC Filter Support

Ref 64

NW 650 Connections Set 2˝"

Ref 54

PVC Fixing Cap

Ref 65

NW 800 Connections Set 3"

Ref 55

Bowl O-Ring

Ref 66

Mounting Plate

Ref 56

Transparent Bowl

Ref 69

Pressure Guages Ľ"

Ref 58

Black Bowl

Ref 70

NW 500-650 O-Ring

Ref 59

Diffuser Tube

Ref 71

NW 800 O-Ring


Call us for the best prices and advice. Tel: 0845 10 80 680 / 01403 701970


All prices are plus VAT and delivery

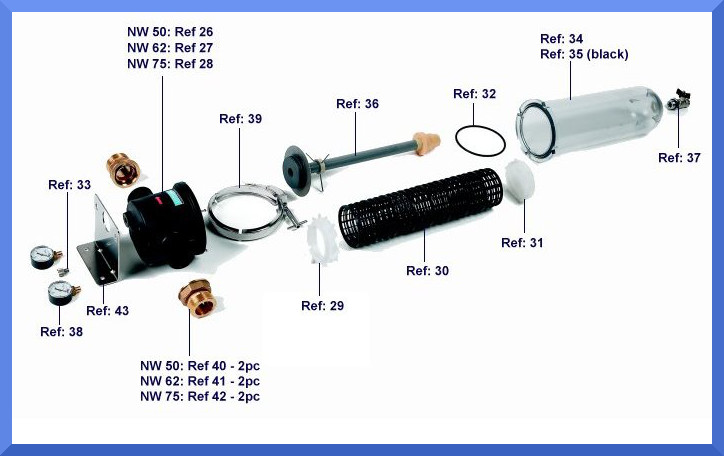

Cintropur Industrial Water Filter, Original - Replacements and Spares

  Buy multi pack socks and save 15%

  Spares for Cintropur Original Industrial Filter Range- NW50, NW62, NW75, NW50TE

Spares for Cintropur Original Industrial Filter Range- NW50, NW62, NW75, NW50TE



Ref 26

NW50 Filter Head

Ref 35

NW50/62/75 Black Bowl

Ref 27

NW62 Filter Head

Ref 36

NW50/62/75 Diffuser Tube

Ref 28

NW75 Filter Head

Ref 37

NW50/62/75 Purge Valve

Ref 29

NW50/62/75 Centrifugal Vane

Ref 38

NW50/62/75 Pressure Guage

Ref 30

NW50/62/75 PVC Filter Support

Ref 39

NW50/62/75 Clamp

Ref 31

NW50/62/75 Fixing Cap

Ref 40

Brass Connection 2inch

Ref 32

NW50/62/75 Bowl O-Ring

Ref 41

Brass Connection 2 1/2inch

Ref 33

Air/Drain Cock and O-Ring

Ref 42

Brass Connection 3inch

Ref 34

NW50/62/75 Transparent Bowl

Ref 43

Mounting Bracket








All prices are plus VAT and delivery


Call us for the best prices and advice. Tel: 0845 10 80 680 / 01403 701970

Cintropur UV Water Treatment  Accessories

Call 0845 10 80 680 / 01403 701970 or email with your required part number for a price.

Cintropur Domestic Spares

Cintropur Domestic Spares


Cintropur Industrial Spares

Cintropur Industrial Spares


Other Spare parts


Cintropur offers a wide range of accessories such as: wall fixations, pressure gauges, drain cocks, and much more.

The refillable CTN container especially developed for models NW25 TE-CTN, DUO-CTN, TIO, TIO-UV make the refill very easy.

Although Cintropur filters are famous for robustness and reliability, we provide for uninterrupted spare parts supply. For any spare part you need, please contact us..







               Call us for the best prices and advice. Tel: 0845 10 80 680 / 01403 701970






£ 249.00
Cintropur UV 2100 Water TreatmentCintropur UV 2100

UVc water sterilisation for bacteria-free water, particularly well suited to the treatment of rainwater.
  • A compact single unit UV.
  • 3/4” + 1” connection diameter.
  • 1.7 kg weight
  • 50° C max temperature
  • 25w lamp power
  • Easy replaced lamp -rotating the UV by 5° to remove the UV lamp and replace it with a new one.
  • Replacement lamp required every 12 months.


Cintropur 2100 UV

Ultraviolet (UV) light treatment is the most effective method of deactivating bacteria in home supplies. If your main water supply is from rainfall, bore water or spring water collected and stored in a tank (boats and caravans), then this is the best method to bring your water up to drinking standard.

This particular disinfection method is known as one demolishing legionella, microbes, bacteria, viruses and protozoa, while having no negative impacts on the environment. There are various possibilities of combining UV and mechanical filter.

Cintropur UV 2100

UVc water sterilisation for bacteria-free water, particularly well suited to the treatment of rainwater.
  • A compact single unit UV.
  • 3/4” + 1” connection diameter.
  • 1.7 kg weight
  • 50° C max temperature
  • 25w lamp power
  • Easy replaced lamp -rotating the UV by 5° to remove the UV lamp and replace it with a new one.
  • Replacement lamp required every 12 months.

BROCHURE

Call us for the best prices and advice. Tel:0845 10 80 680 / 01403 701970

All prices are plus VAT and delivery
£ 349.00
Cintropur TRIO-UV Water TreatmentCintropur TRIO-UV

UVc water sterilisation for bacteria-free water, particularly well suited to the treatment of rainwater.
  • Cintropur TRIO - Filter, Purify and Sterilise all in one compact unit.
  • 3/4” + 1” connection diameter.
  • 4,3 kg weight
  • 50° C max temperature
  • 25w lamp power
  • Easy replaced lamp -rotating the UV by 5° to remove the UV lamp and replace it with a new one.
  • Replacement lamp required every 12 months.



Cintropur TRIO-UV


1. Filters
The spiral structure of the filter generates a centrifugal force, which, in a cyclone effect, moves larger particles
towards the bottom of the bowl. The remaining contaminants are then subject to fine filtration adaptable to particular needs, with filtering fineness ranging from 5 to 25 microns.

2. Purifies
Treatment by activated carbon removes unpleasant tastes and odours, as well as pesticides and herbicides from the water. Activated carbon is contained in a separate holder for easy replacement The activated carbon media can easily be replaced by screwing off the top cover.

3. Sterilises
UVc water sterilisation to ensure the bacteria-free quality of water. Particularly well suited to the full treatment of rainwater.



Ultraviolet (UV) light treatment is the most effective method of deactivating bacteria in home supplies. If your main water supply is from rainfall, bore water or spring water collected and stored in a tank (boats and caravans), then this is the best method to bring your water up to drinking standard.

This particular disinfection method is known as one demolishing legionella, microbes, bacteria, viruses and protozoa, while having no negative impacts on the environment. There are various possibilities of combining UV and mechanical filter.

Cintropur TRIO-UV

  • Cintropur TRIO - Filter, Purify and Sterilise all in one compact unit.
  • 3/4” + 1” connection diameter.
  • 4,3 kg weight
  • 50° C max temperature
  • 25w lamp power
  • Easy replaced lamp -rotating the UV by 5° to remove the UV lamp and replace it with a new one.
  • Replacement lamp required every 12 months
BROCHURE

Call us for the best prices and advice. Tel:0845 10 80 680 / 01403 701970

All prices are plus VAT and delivery
