Cintropur Water Filter NW400 - Flow Rate 12m/h / 1 1/2"

Cintropur
In Stock
£ 220.00
3000g

payment 100% secured

AMEX/VISA/Mastercard with Sage Pay & Paypal

fast shipping

Worldwide deliveres

for advice 0344 557 2654

Monday to Friday 9am to 6pm

  1.  #Product Info#

    The NW400 is part of the high quality range of Semi-Industrial Water Filters from Cintropur, designed for filtering clear and slightly contaminated water. Designed for filtering out solid particles (earth, sand, rust, etc,) suspended in the water.

    There are three models with the Semi-Industrial range offering high flow rates with compact sizing and low cost.


    NW400 Technical Data



    Pipe Diameter

    1.5"

    Average Flow (m/h)

    12

    Pressure (bar)

    10

    Max Pressure (bar)

    16

    Max Temperature (C)

    50

    Weight (kg)

    2.9

    Standard Filter Sleeve

    25

    Filtration Surface (cm)

    1010


    Cintropur Semi-Industrial water filters are designed for yields of between 7.5 and 12 m/hour and for pressures of up to 10 bar.

    • NW 400 : 12 m3/h (1.5")



    Possibility of combining mechanical filter + UV and activated carbon with DUO, TIO® (Two in one) TIO®+UV.

    Main advantages

    • double stage of filtration (centrifugal flow thanks to the vane + filtering sleeve)
    • filtration practically without accumulation
    • low pressure drop
    • high and constant flow rate
    • wide choice of filtering fineness ranging from 1 to 300 microns
    • sealing guaranteed thanks to the O-ring system
    • fast and easy rinsing thanks to the drain valve
    • long lifetime and uninterrupted spare parts supply
    • reduced need for maintenance

    Cintropur  water filters are fitted with a 25 micron filter sleeve as standard issue, a system of interchangeable and disposable sleeves offer filtration at 1, 5, 10, 25, 50 and 100 micron. 150 & 300 micron nylon (washable) sleeves are also available for these models.

    The connection options range from 1" to 1.5", using a connector set that allows placement and removal of the filter without requiring any tools

    Bowl transparency enables visual inspection of impurity deposits.

    Recommended replacement of filters at least twice a year for drinking water.

    Filter sleeves come in a flat pack of 5.

  2. #Brochure#

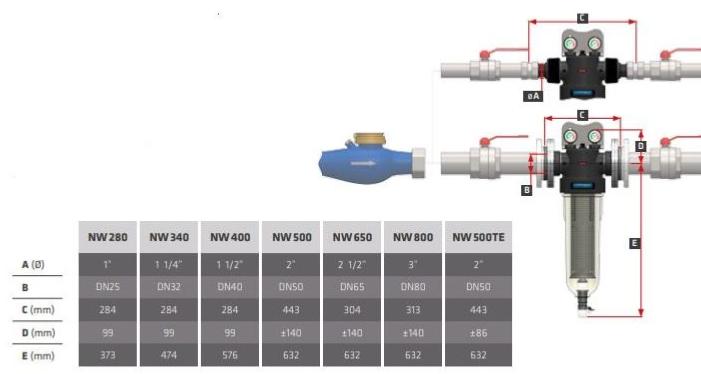

  3. #Dimensions#
