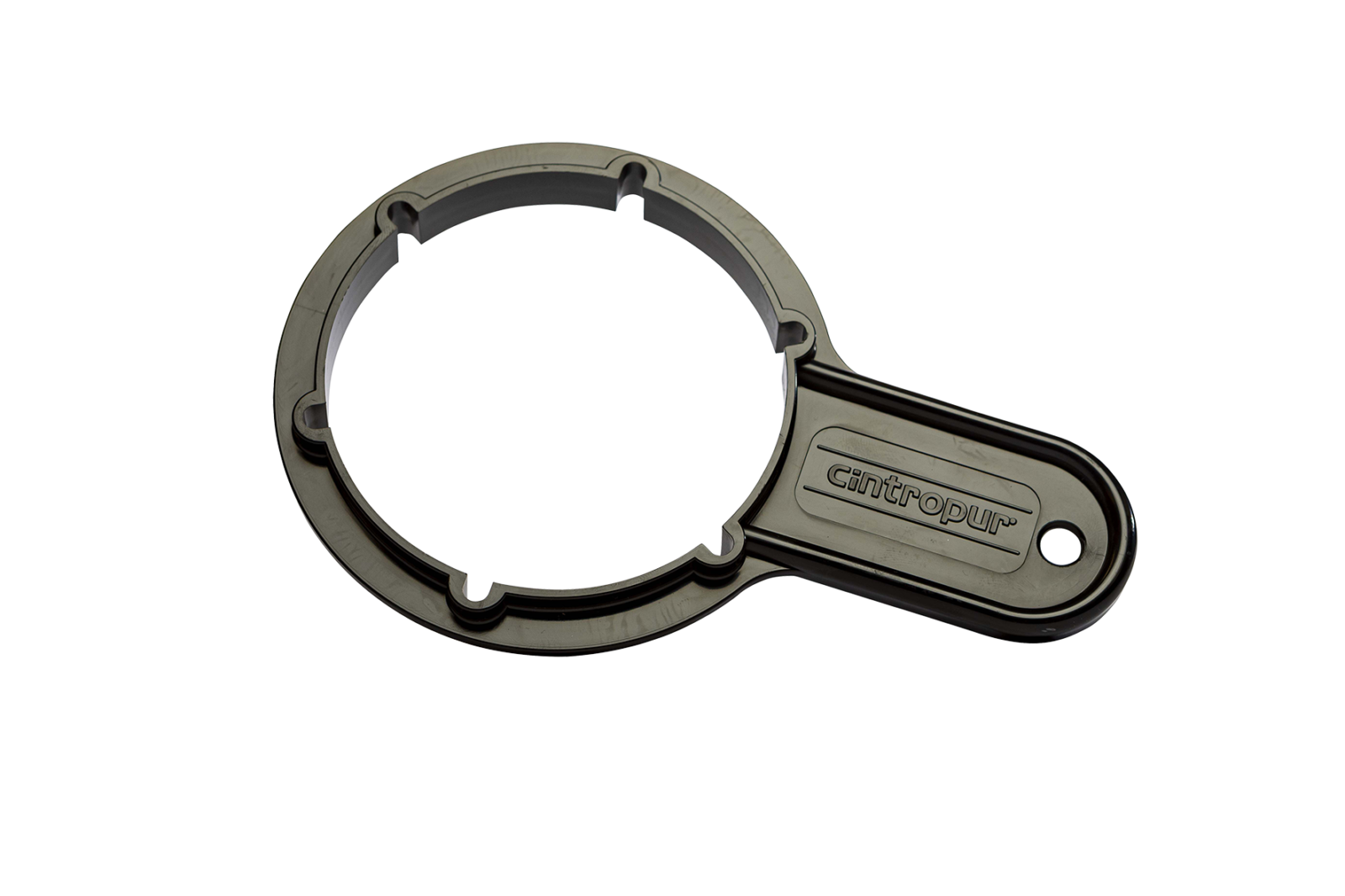

The Cintropur model SL160-3/4 water filter from the Smart Line range, is supplied as a complete kit including a 25 micron filter sleeve, a wall mounting bracket, spanner (for removing the filter bowl) and a technical information.

  1. #Product Info#
    A complete, domestic water filter, the Cintropur SL240 is a centrifugal filter suitable for domestic situations that need to filter rainwater, borehole or well water for drinking.  The basic principle being to filter out solid particles such as earth, sand, rust etc, suspended in the water.

    Technical Data - SL240

    Pipe Diameter

    or 1"

    Average Flow (m/h)

    3.5 - 4.5

    Pressure (bar)

    8

    Max Pressure (bar)

    12

    Max Temperature (C)

    50

    Weight (kg)

    0.9

    Standard Filter Sleeve

    25

    Filtration Surface (cm)

    440



    Main advantages

    • double stage of filtration (centrifugal flow thanks to the vane + filtering sleeve)
    • filtration practically without accumulation
    • low pressure drop
    • high and constant flow rate
    • wide choice of filtering fineness ranging from 5 to 300 microns
    • sealing guaranteed thanks to the O-ring system
    • fast and easy rinsing thanks to the drain cock
    • long lifetime and uninterrupted spare parts supply
    • reduced need for maintenance

    Cintropur domestic water filters are fitted with a 25 micron filter sleeve as standard issue, a system of interchangeable and disposable sleeves offer filtration at 1, 5, 10, 25, 50, 100 and 300 micron.

    Bowl transparency enables visual inspection of impurity deposits.

    Recommended replacement of filters at least twice a year for drinking water.

    Filter sleeves come in a flat pack of 5 and are sold as single or save with multiple packs!

  2. #Maintenance Video#

  3. #Brochure#




  4. #Manual / Spec#



  5. #Exploded View#

    Click on the image below for a printable version of the spare parts with codes.





Cintropur Water Filter SL240 - Flow Rate 3.5-4.5m/h / 1"

Cintropur
In Stock
£ 63.00
4000g
